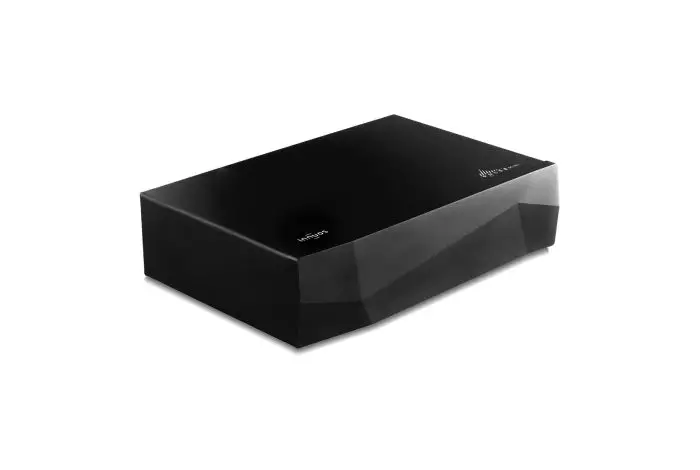

Innuos PULSEmini Streamer & DAC
Dedikeret netværksstreamer til brug med f.eks. Innuos Sense app eller som Roon Endpoint. Coax S/PDIF og TosLink S/PDIF output, samt USB i op til 32-bit / 768 Mhz eller DSD512. Endvidere med analogt RCA output via indbygget DAC. Leveres i farven sort og kan udbygges med separat strømforsyning.
- Gratis fragt over 750 DKK
- Lagervarer sendes indenfor 24 timer
- Afhentning i butik
Dedikeret netværksstreamer til brug med f.eks. Innuos Sense app eller som Roon Endpoint. Coax S/PDIF og TosLink S/PDIF output, samt USB i op til 32-bit / 768 Mhz eller DSD512. Endvidere med analogt RCA output via indbygget DAC. Leveres i farven sort og kan udbygges med separat strømforsyning.
The PULSEmini is our entry-level music player but its sound is anything but entry-level. Following on the design of our acclaimed ZEN Series, the PULSEmini features a chassis with a front panel bead-blasted and anodised from the best grade aluminium for a perfect finish, complemented cover painted from automotive-grade finishing.
PULSEmini has the power and reliability to run innuOS Operating System specifically configured for optimal music playback:
- Custom-designed motherboard with an Intel quad-core processor
- Industrial-Grade SSD module specifically for the Operating System with power-loss protection, Low Density Parity Check ECC engine and Global Wear-Levelling technologies
- 4GB of highly reliable Industrial-Grade RAM
PULSEmini outputs PCM up to 32bit/768MHz as well as up to DSD512 via USB to compatible DACs. It further complements its digital outputs with analog RCA, coaxial and optical SPDIF outputs capable of up to 24bit/192KHz.
The new Innuos PULSE series brings you the Innuos experience whether you want to mostly play music from streaming services like Qobuz or TIDAL or whether you just want another zone in your home connected to your main music server. The Innuos PULSE Network players can be used in two different modes:
– On Standalone mode, you are able to use the Innuos Sense app to play streaming services, Internet Radio and music stored on a NAS to a multitude of audio systems. In this mode, the network player becomes the centre of your audio system, enabling also to use the Sense app with other streamers on your network. You will benefit from all the features of the Sense App including:
- TIDAL and Qobuz integration including Artist Bios, Related Artists, Top Tracks and more.
- Ability to manage TIDAL and Qobuz albums together with albums stored on a NAS for a unified Music Library.
- Internet Radio with easy preset creation.
- Radio Paradise.
- Ability to search tracks playing on Internet Radio / Radio Paradise on Streaming Services.
- Fast Integrated Search through Streaming Services and music on a NAS.
- Easy creation of playlists from multiple streaming services and music on NAS.
- Possibility to integrate Spotify Connect and Airplay connectivity based on the provided Logitech Media Server platform.
- Curated and Configurable Smart Mixes based on your music.
- Home Screen widgets on the app to access your favorite features at the touch of a button.
– On Endpoint Mode, the PULSE Network Players connect to a main Music Server, be it an Innuos Music Server, Roon Core, HQ Player or any Logitech Media Server based server. The PULSE will then show as a zone on the respective music server app and you will use that app to browse and play music on the Pulse Network Players.
AUDIO OUTPUTS
Digital Output
- Coaxial SPDIF (Up to 24bit/192KHz PCM)
- Optical SPDIF (Up to 24bit/192KHz PCM)
- USB (Up to 32bit/768KHz, Up to DSD256 via DoP, Up to DSD512 via Native DSD)
Internal DAC
- TI PCM5102 supporting 24bit/192KHz PCM
Analogue Output
- RCA Anal
CONNECTIVITY
Ethernet
- 2 x rear panel RJ45 – Bridged Gigabit Ethernet
USB
- 4x USB 3.0
FORMATS
Audio Formats Supported for streaming and playing
- WAV, AIFF, FLAC, ALAC, AAC, MP3, MQA (with supported DACs)
ENDPOINT MODE
- Connects to Innuos Music Servers, Logitech Media Server based Servers or HQPlayer Server
USER CONTROL INTERFACES
Web Interface
Modern Web Browsers from iOS, Android, Windows and Mac OS X
Mobile Interface
- Innuos Sense App (iOS/Android/Kindle Fire)
HARDWARE
CPU
- Intel Quad Core N4200
Memory
- 4GB DDR3 Low-Voltage RAM (2GB Dedicated for RAM Playback)
Storage
- None (SSD only for operating system)
STREAMING AND DAC SUPPORT
UPnP/DLNA
- Controls selected UPnP streamers as endpoints via Sense
Streaming Services
- Qobuz, Tidal, Radio Paradise, Internet Radio
USB DAC Support
- USB DACs complying to USB Audio Class 2
- USB DACs supporting DSD over DoP protocol
- Selected USB DACs supporting Native DSD
REQUIREMENTS
Network
- Internet connection to access Internet Radio, Streaming Services and software updates
- Network router with at least one available ethernet port
- Premium subscription required for some streaming services such as Spotify, Qobuz and Tidal
PHYSICAL
Dimensions
- 227mm x 160mm x 74mm (W x D x H)*
Weight
- 1,8 Kg
In the box
- Innuos PULSEmini Network Player
- AC/DC Power Adapter
- Mains Cable
- 2m Ethernet Cable
- Quick Start Guide
