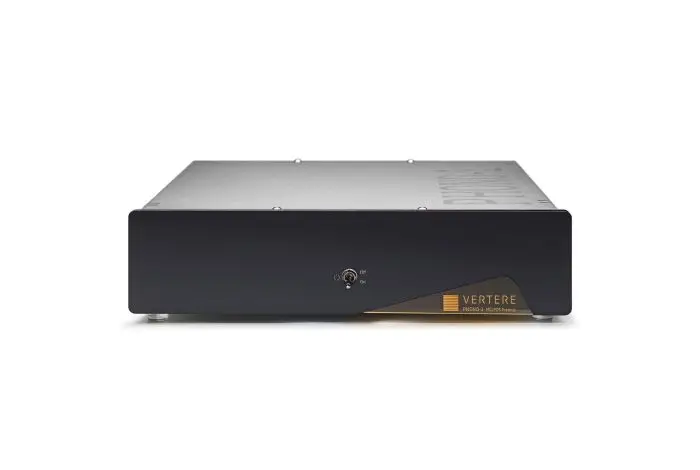

Vertere PHONO-1 mk II L

På lager
12.390 DKK
Leveringstid:3-4 uger

Vertere PHONO-1 MkII L får det bedste ud af enhver højkvalitets pladespiller med maksimalt dynamikområde og suveræn detaljeopløsning. Med mere end 10 forstærkningsindstillinger, 15 modstands- og 9 kapacitansindstillinger overlader "PHONO-1 MkII L" intet til tilfældighederne. Den passer perfekt til næsten enhver Moving Coil eller Moving Magnet pickup.

  • Gratis fragt over 500 DKK
  • Lagervarer sendes indenfor 24 timer
  • Afhentning i butik

"Vertere PHONO-1 MkII L" får det bedste ud af enhver højkvalitets pladespiller med maksimalt dynamikområde og suveræn detaljeopløsning. Med mere end 10 forstærkningsindstillinger, 15 modstands- og 9 kapacitansindstillinger overlader PHONO-1 MkII L intet til tilfældighederne. Den passer perfekt til næsten enhver Moving Coil eller Moving Magnet pickup.

Hvorfor købe en Vertere PHONO-1 Mk II L?
- Oplev potentialet med din highend pladespiller.
- Enestående dynamik og detaljeringsgrad med en ekstrem præcis RIAA equlizer.
- Perfekt niveau og load match til MC og MM pickupper.
- Formidler tilbagevendende fornøjelse ved afspilning af vinylskiver.


Enjoy the full musical experience from every track and every album with PHONO-1 MkII L, the perfect interface between your record player and your amplifier.

The new MC | MM Preamplifier PHONO-1 MkII L gets the best from any high-quality record player, with maximum dynamic range and supreme detail resolution. With more than 10 gain settings, 15 resistance and 9 capacitance settings, PHONO-1 MkII L leaves nothing to chance. It makes the perfect match for almost any Moving Coil or Moving Magnet cartridge.

Gold Plated PCB Assembly
New ‘L’ shaped high-quality gold plated PCBs for the main phono circuit and the mains power transformer ensure optimised grounding and power distribution. Stainless steel shield ensures that any unwanted interference is kept well away from the audio signal.

Combined with the use of high-quality components and special solder, guarantee consistent optimum performance for the long term.

Double Shielded Main Circuit
Vertere’s PHONO-1 MM | MC Preamplifier utilises stainless steel shields to further enhance isolation of the RIAA and preamplifier circuits. All power supply components and circuits are outside of the main cover shield and away from any signal path.

Switchable Input Loading
PHONO-1 MkII L has two switch banks, now easily accessible from the underside of the unit, that allow 15 resistance and 9 capacitance settings for left and right channels.

Perfect load matching is crucial to maximising performance, for both Moving Coil and Moving Magnet cartridges – and in this respect PHONO-1 leaves nothing to chance.

Switchable Gain Setting
Another switch bank, also easily accessible from the underside of the unit, offers no less than 10 gain settings to provide the best level matching, within the gain range provided.

This ensures minimal level change between different sources used in the system.

Chassis Ground and PCB Earth Switch
A 3-way switch provided at the back of PHONO-1 gives the options of ‘Hard Ground’, ‘Ground Lift’ or ‘Soft Ground’ connection of the preamplifier and the chassis, to minimise any hum that may be introduced between the PHONO-1 and the main amplifier.

PHONO-1 Finishes
The PHONO-1 is available in a range of high-end finishes, including a new DG-1 design featuring a front panel to match the new Vertere record player (pictured). Finishes also available: Silver aluminium, Signature Vertere Orange and Semi-matt Black.

Vertere PHONO-1 mk II L

Power Supply
Linear, Int. Switchable
Transformer on Separate Gold Plated PCB

Gain Settings
40.2dB to 62.8dB
In 12 Steps – See Manual
High Gain version - Add 6.4dB to all settings

Input Impedance Settings Resistance

Capacitance
47k for MM
78R to 47K for MC - in 14 Steps - See Manual
100pF & 470pF for MM
100pF to 1.02uF for MC – In 9 Steps – See Manual

Frequency Response
20Hz – 20kHz
+/- 0.2dB

Noise
< -78dB – AWD

THD-N
0.03%

Finish
Front Panel Options
Vertere Orange, Silver, Black

Dimensions
210 x 235 x 55mm

Weight
2.00Kg
