Chord Huei Phono / RIAA
Baseret på 30 års erfaring med at bygge forstærkere, udvides Qutest-serien med en MM/MC-riaa'en Huei som bringer pladespilleren videre til forstærkerne på stilfuld, praktisk og fornem vis.
- Gratis fragt over 750 DKK
- Lagervarer sendes indenfor 24 timer
- Afhentning i butik
Baseret på 30 års erfaring med at bygge forstærkere, udvides Qutest-serien med en MM/MC-riaa'en Huei som bringer pladespilleren videre til forstærkerne på stilfuld, praktisk og fornem vis.
Impedans:
MM = 47 ohm
MC = 30-47.000 ohm (12 trin)
Gain:
MM = 25-35 dB (8 trin)
MC = 48-70 dB (8 trin)
Entirely conceived, engineered and manufactured in Great Britain, Huei has been carefully designed to provide turntables with the same high standards of amplification that Chord Electronics has become known for over the past 30 years.
Benefitting from both Moving Magnet and Moving Coil functionality, Huei offers compatibility with a huge range of cartridges thanks to comprehensive gain and impedance-matching options; Huei’s high- and low-gain switching settings are easily accessible via front-panel controls, introducing welcome flexibility.
Huei’s advanced design offers (for the first time in a Chord Electronics phono preamp) ultra-low-noise microprocessor control of its main features, including a convenient memory function. With multiple options for impedance-matching, seven-stage switchable gain and a switchable rumble filter, Huei’s design offers comprehensive compatibility.

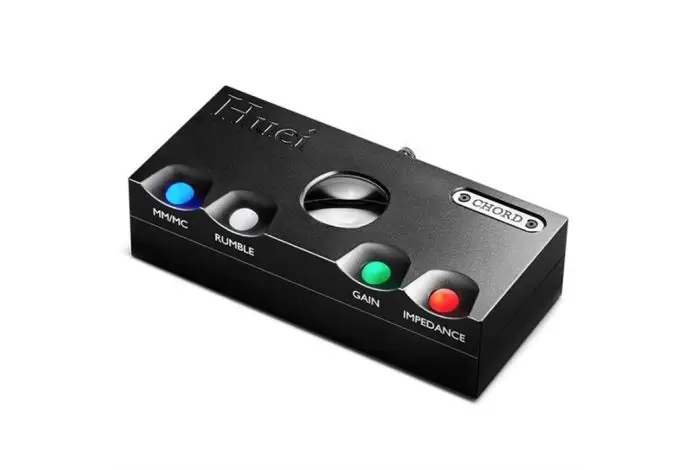

Precision-machined from solid aircraft-grade aluminium billet, Huei has a similar form factor to the company’s Qutest DAC and also offers a top-mounted viewing window into the illuminated electronics within. The design also shares the same polychromatic control spheres the company has become known for in its digital products. The illuminated front-panel spheres offer direct access to Huei’s gain and impedance settings, selection for MM/MC cartridges and access to the on-board rumble filter.
Input Impedance:
Moving magnet: 47,000Ω
Moving coil:
100Ω – 3,700Ω, 12-step user selectable
Gain Range:
Moving magnet: 21dB – 42dB, 8-step user selectable
Moving coil: 49dB – 68dB, 8-step user selectable
Input Noise:
1.1nV/Hz
Max Output Voltage RMS:
20v RMS
Equalisation Response:
RIAA Curve
Equalisation Accuracy:
+/- 0.1dB
Frequency Response:
RIAA Curve = 12Hz to 25kHz
Rumble Filter:
Rausch Slope -24dB per octave below 50Hz
Output Impedance:
520Ω (resistive)
Input Power Supply:
12v – 100v to 240v 50/60Hz PSU
Dimensions:
4.5cm (H) 16cm (W) 8.8cm (D)
Weight:
657g
