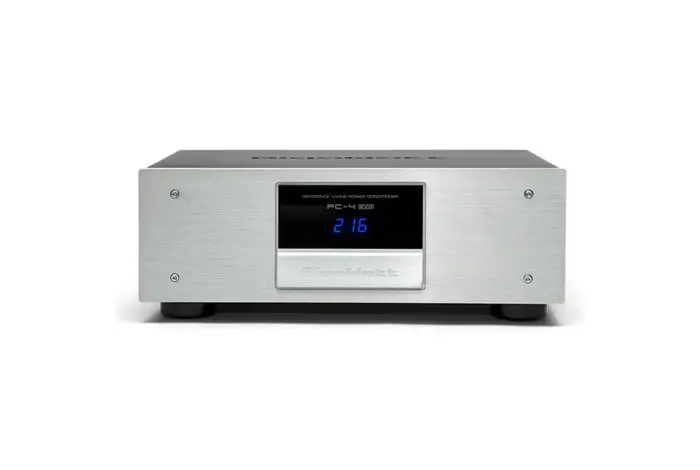

Gigawatt PC-4 EVO+ med kabel

GIGAWATT PC-4 EVO+ er flagskibsmodellen blandt strømrenserne og betragtes som en af de bedste og mest avancerede konstruktioner i verden.

Dette er en referenceenhed, designet til at levere strøm til high-end audio- og videoudstyr i topklassen. PC-4 EVO+ er kulminationen på mange års forskning og udvikling af en kompromisløs strømrenser. PC-4 EVO+ tilbyder ikke kun en yderst effektiv beskyttelse mod forstyrrelser og overspændinger fra elnettet, men garanterer også en markant forbedring af lyd- og billedkvaliteten på de enheder, der er tilsluttet den.

Alle interne komponenter i strømrenseren er indkapslet i et ultra-stift, ikke-magnetisk aluminiumchassis for at sikre maksimal stabilitet. Chassiset er yderligere dæmpet med en bitumen-polymer kompositmåtte for at reducere vibrationer, som kan påvirke enhedens ydeevne negativt.

Hele konstruktionen er ophængt på reference anti-vibrationsfødder, der er udstyret med et innovativt Rolling-Ball Isolation System. Dette system består af to dele lavet af massivt aluminium med kuglelejer imellem. Formålet er at minimere kontaktpunkterne mellem fødderne og hylden, som enheden står på, hvilket reducerer mekaniske vibrationer betydeligt og forbedrer lydkvaliteten.

Frontpanelet er fremstillet af et tykt stykke luftfartsgodkendt aluminium, der er børstet efter præcis fræsning og derefter anodiseret i enten sort eller sølv.

PC-4 EVO+ har tolv højkvalitets GigaWatt-strømudtag med stor kontaktflade. Messingkontakterne er sølvbelagte uden brug af mellemmetaller som kobber eller nikkel, hvilket kunne introducere uønsket modstand og spændingstab. Den store kontaktflade og det tykke lag sølv sikrer en perfekt kontakt med stikbenene. Stikkene er desuden kryogenisk behandlet og afmagnetiseret.

I midten af fronten er der et LED-display, der viser indgangsspændingen. Det præcise voltmeter er meget modstandsdygtigt over for forvrængning og målefejl, der kan opstå fra harmoniske frekvenser, og skaber ingen interferens, der kunne forringe den filtrerede strøm.

PC-4 EVO+ er udstyret med et kredsløb, der indikerer forkert tilslutning til elnettet. En rød LED på bagsiden signalerer, hvis der er forkert polaritet eller defekt jordforbindelse.

Tekniske løsninger

PC-4 EVO+ har tre uafhængige filtreringsgrene, som forsyner tre sektioner, hver med fire udgangsstik. Hver filtreringsgren er tilpasset en specifik belastningstype – digitale, analoge eller højstrømsenheder. De autonome passive filtre isolerer effektivt forstyrrelser mellem enheder tilsluttet samme strømforsyning.

Strømrenseren bruger en innovativ to-trins strømfordelingsarkitektur med massive distributionsskinner lavet af poleret oxygenfrit kobber (OFHCC 10100) med en renhed på 99,997%. Strømmen fordeles effektivt til hver filtreringsgren, og der leveres strøm direkte til udgangsstikkene via boltfaste forbindelser og ledninger med et tværsnit på 4 QMM af oxygenfrit kobber, isoleret med FEP Teflon. Stjernetopologien sikrer en ensartet og stabil strømfordeling, uanset belastningen.

Filtreringskredsløbene er monteret med sølvlodning på dobbeltlags printplader, der har femten gange så meget kobber som standardprintplader. Printpladerne har brede spor af sølvbelagt kobber med en samlet tykkelse på 550 mikrometer. Interferens dæmpes af RLC-filtre bygget med Audio Grade-kondensatorer og HF (High Flux) kernespoler.

PC-4 EVO+ er også udstyret med kapacitorer af høj kapacitet, fremstillet af Miflex i henhold til GigaWatts specifikationer, for at øge filtreringseffektiviteten.

Enheden benytter ikke traditionelle beskyttelseselementer som smeltesikringer, da de kan hæmme strømflowet og påvirke lyden negativt. Beskyttelse mod overspænding sikres af en startblok med plasma-gnistgab, UltraMOV-varistorer og et indledende filter. Overbelastningsbeskyttelsen leveres af en to-polet hydraulisk-magnetisk afbryder fra Carling Technologies, fremstillet efter GigaWatts specifikationer. Denne komponent styrer strømmen i enhedens interne kredsløb og fungerer som hovedafbryder.

Den interne konstruktion af PC-4 EVO+ tillader en konstant belastning på op til 25A og op til 90A i peak-belastning. Dette giver en stor strømreserve, hvilket er essentielt for at forsyne kraftige effektforstærkere, som kan belaste strømforsyningen over dens nominelle kapacitet. Enheden er udstyret med et PowerCon 32 Amp-stik med sølvbelagte ben, der kan håndtere op til 32A.

For at sikre maksimal impulsrespons er PC-4 EVO+ udstyret med et dobbelt buffersystem med Audio Grade-kompensationsbatterier, som eliminerer forskellen i strøm mellem ind- og udgang. Dette sikrer næsten ubegrænsede impulsmuligheder, som overgår ydeevnen af både passive og aktive strømrenser.

En standardkomponent i PC-4 EVO+ er DC Offset Blockeren, som eliminerer uønskede DC-komponenter i strømnettet, hvilket ellers kan forringe lydkvaliteten ved at forårsage magnetisering af transformatorernes kerner, hvilket øger støjniveauet og reducerer effektiviteten.

GigaWatt PC-4 EVO+

All internal elements of the conditioner were enclosed in an ultra-rigid, non-magnetic aluminum chassis.

To reduce the vibration passed onto the conditioner, its chassis was additionally damped with composite bitumen-polymer mat.

The whole is suspended on reference, anti-vibration feet equipped with an innovative solution – Rolling-Ball Isolation System. This is a design made from two parts (external and internal) made from solid aluminum, with two runs with balls in-between them. The role of the system is to minimize the amount of contact points between the foot, and then the conditioner, with the shelf it is put on, what translates into a significant reduction of mechanical vibration, which negatively impact the work of the internal elements of the conditioner degrading its sound. Another isolation element, on which the whole construction is supported, is the proprietary elastomer, 5mm thick.

The front panel of the conditioner is made from a thick slab of aviation grade aluminum. Its surfaced is brushed, after precision milling, and then anodized black or silver.

The PC-4 EVO+ has twelve, high quality proprietary power sockets GigaWatt, with large surface contacts. The brass contacts of the sockets were subdued to the process of technical silver plating without usage of intermediate metals, like copper or nickel, which could introduce an unfavorable serial resistance and a voltage loss. The increased surface of the contacts and the thick layer of silver guarantee good contact with the plug pins. The sockets were additionally cryogenically modified and de-magnetized.

In the central part of the front, there is an LED display indicating the voltage of the input current. The precise voltmeter is very resistant to distortion and measurement errors caused by upper harmonics, at the same time not generating any interference, which would impair the quality of the power filtered by the conditioner.

The voltmeter display is red as standard, but is available in green, blue or white on demand.

The conditioner is also equipped with an additional circuit signaling wrong connection to the power grid. Its action is indicated by a red LED on the back of the unit, which signals wrong polarity of the device or faulty grounding.

TECHNICAL SOLUTIONS

The conditioner PC-4 EVO+ is equipped with three, independent filtering branches, which supply three sections, composed of four output sockets each. Due to this solution the kind of filtering was adjusted for the load it has, different for each type of devices – digital, analog or high current devices. Autonomous passive filters allow for isolation from interference produced by the devices connected together via a shared power line.

The PC-4 EVO+ is based on a novel filtering architecture, where the most advanced and uncompromised components were used. The main novelty are the anti-interference capacitors and the compensation batteries for the buffering circuits, which are manufactured by the company Miflex, according to GigaWatt specification.

In the PC-4 EVO+ an innovative, two-stage current distribution system is used, a proprietary design of our company. It is based on massive third generation distribution rails, made from polished slabs of oxygen-free copper OFHCC 10100 with 99.997% purity. The first stage allows for lossless and even distribution of voltage to each of the filtering branches. The second stage provides current directly to each pair of output sockets via bolted and clamped connections as well as cabling with conductors with 4QMM cross-section made from oxygen-free copper isolated with FEP Teflon. The star connection topology and high conductance combined with the 45 QMM cross-section of each of the rails allow for an uniform and stable power distribution regardless of the load on the individual outputs of the conditioner.

Due to the improved efficiency of the filtering circuits, they were mounted using silver solder on massive PCBs having fifteen times the amount of copper compared to standard PCBs. The dual layer PCBs have very wide traces made from silver plated copper, with a combined thickness of 550 micrometers. The interference is damped by filtering blocs of RLC type, built around proprietary Audio Grade capacitors and HF (High Flux) core filters.

The newest version of the PC-4 EVO+ is equipped with special capacitors – with higher capacity and more efficient than in the lower models. Those capacitors are manufactured by a renowned and valued company on the specialist market, Miflex, according to GigaWatt specifications.

In the conditioner there are no traditional protective elements, like thermal or blow fuses, which throttled the free flow of the current have a negative influence on the sound. The surge protection of the conditioner is provided by the starting block, which utilizes plasma spark-gaps, UltraMOV new generation varistors and an initial filter. Overload protection is provided by a two-pole hydraulic-magnetic switch from Carling Technologies, made in USA to a special specification from GigaWatt. This element controls the amount of current flowing through the internal circuits and additionally serves as the unit’s main power switch. All those elements working together with a well-made, contemporary power grid, guarantee a complex protection against surges and overcurrent.

The internal construction of the elements of the PC-4 EVO+ conditioner allow for transferring loads up to 25A constantly (and 90A peak), of course, if the power grid can handle that. Such big reserve is not required for the lossless power transfer from the power grid, but to have a oversized reserve of power for peak, impulse loads. Power reserve is fundamental for powering powerful power amplifiers, which load the power line to values many times over the nominal load. The main power supply socket is a professional PowerCon 32 Amp one with silver plated pins, able to transfer stable current of 32A. The maximum load of 25A is almost three times the typical load of similar devices using the popular IEC socket.

To allow for the maximum impulse response, the PC-4 EVO+ is equipped with a double buffer circuit with Audio Grade compensation batteries, a proprietary design. The circuit increases the current output with non-linear loads, like power amplifiers, as well as eliminates the difference of power between the input and output of the conditioner. This allows for almost unlimited impulse capabilities, unheard of in other passive conditioners and not reachable for active conditioners. The impulse capabilities of the PC-4 EVO+ surpass even the values of clean power line without any devices connected to it.

The standard equipment of PC-4EVO+ is also DC Offset Blocker –  a circuit eliminating unwanted DC component of the power grid. This DC component is a very deteriorating phenomenon, which exists in almost all power grids. It results in the sinus wave of the alternating current become non-symmetrical (non-sinusoidal) and has negative impact on all devices using transformers. It causes their cores to become magnetized, what increases their noise, diminishes the efficiency of power supplies and lower sound quality as a result of those. The DC blocker allows to eliminate this phenomenon effectively, without causing any compression or any other negative influence on the sound.
