MSB M205 Mono Amplifier (Sæt)

På lager
525.000  DKK
Leveringstid:3-4 uger

Er der ikke nok skud i S202 effekttrinet, så finder du en løsning i monoblokkene M205, der bygger på S202-modellens kredsløbsdesign og strømforsyning. Men som monoblokke er der rå power til rådighed til selv de mest krævende højttalere, og lydkvaliteten er i absolut topklasse med rafinement og overskud i rå mængder.

  • Gratis fragt over 750 DKK
  • Lagervarer sendes indenfor 24 timer
  • Afhentning i butik

Er der ikke nok skud i S202 effekttrinet, så finder du en løsning i monoblokkene M205, der bygger på S202-modellens kredsløbsdesign og strømforsyning. Men som monoblokke er der rå power til rådighed til selv de mest krævende højttalere, og lydkvaliteten er i absolut topklasse med rafinement og overskud i rå mængder.

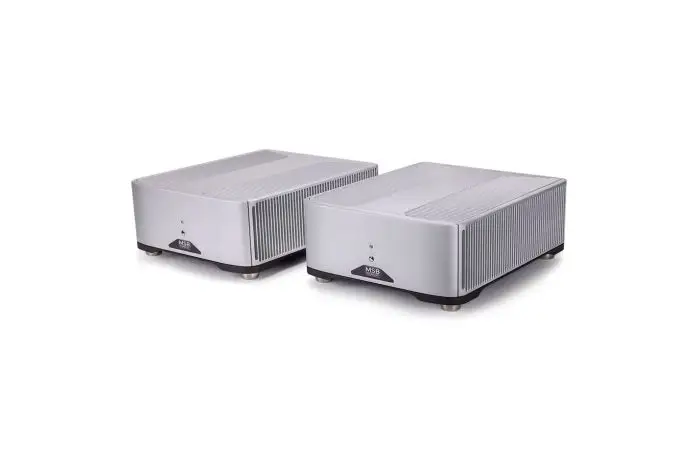

MSB M205 Mono

Innovation. Redoubled.

After the resounding success of the S202 Stereo Amplifier, there were many requests for an improved mono amplifier in the same compact chassis. The M205 refines the S202’s already incredible performance with an upgraded input stage and a doubling of the power supply transformers and capacitors. The result is a spectacular increase in sound quality with increased sound-stage definition, vocal realism, and instrument solidity available from the very first notes.

The M205 perfectly complements our DAC’s ultra high dynamic range with optimized architecture in the critical areas of audio performance, power supplies, and ultra low-noise design. The fully modular cores, matched impedance input stages and billet CNC chassis’ result in the highest value mono amplifiers we’ve ever created.

MSB M205 Mono

Power without limits

Thanks to two massive custom low-noise high-current toroidal transformers and rugged high-current output buffers, the M205’s provide a transparent, holographic listening experience that’s completely fatigue free. This ensures that the amplifiers present consistent performance even with difficult speakers.

Per mono amplifier

Static Power Consumption
90 Watts On
Standby power less than 2 watts

Operating Voltage Range
120/240V (Auto switching)
100V (Fixed)

Fuse
1/4″x1-1/4″ 10A 250V Slow Blow

Input
2x XLR Input

Output
1x Binding post set per channel

Controls
Input Impedance Switch
On/Off Button
Standby Button
Display Dimmer
12V Mode Switch
2x MSB 12V trigger port

Continuous Power Output (8Ω) < 1% distortion
200 W

Continuous Power Output (4Ω) < 1% distortion
380 W

Frequency Response (20 to 20kHz)
±0.03dB

Signal to Noise (20 to 22kHz)
>130dB (>133dBA)

Equivalent Input Noise (22kHz BW)
0.65μV

Crosstalk @ 2kHz
<-110dB

Gain (150Ω source impedance)
23.8dB

Input Impedance (User Selectable
75Ω / 300Ω / 1.2kΩ

Output Impedance (20 to 20kHz)
0.01Ω

Topology

Input/Gain Stage
– Class-A
– Double balanced
– Impedance matched
– Fully discrete
– Independent power

Output Stage
– Class-AB
– Balanced
– Medium bias
– Current gain only

Chassis Dimensions
Width: 404 mm
Depth: 483 mm
Height: 165 mm Without Feet / 178 mm With Feet
Weight: 41 kg

Product Feet:
M6X1 Thread
3 or 4 Foot Configuration

Shipping Dimensions
Width: 610 mm
Depth: 718 mm
Height: 419 mm
Weight: 62 kg
