MSB M500 Mono Amplifier (Sæt)

På lager
1.290.000  DKK
Leveringstid:3-4 uger

Leder du efter det ultimative forstærkersæt? Så led ikke længere - MSB leverer varen. Kompromisløst bygget og en lyd der har blæst musikelskere bagover i hele verden. Her er finesse, dynamik og overskud i rå mængder, og alt sammen pakket ind i rasende flot finish med det helt rigtige udseende.

Her får du svimlende 500 Watt i 8Ω og 1.000 Watt i 4Ω.

  • Gratis fragt over 750 DKK
  • Lagervarer sendes indenfor 24 timer
  • Afhentning i butik

Leder du efter det ultimative forstærkersæt? Så led ikke længere - MSB leverer varen. Kompromisløst bygget og en lyd der har blæst musikelskere bagover i hele verden. Her er finesse, dynamik og overskud i rå mængder, og alt sammen pakket ind i rasende flot finish med det helt rigtige udseende.

Her får du svimlende 500 Watt i 8Ω og 1.000 Watt i 4Ω.

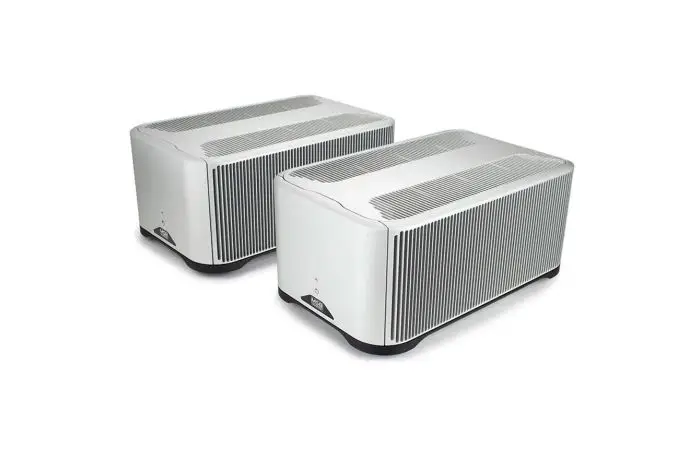

MSB M500 Mono

Powered by innovation

The world’s leading DACs needed an amplifier to match. The result was a clean slate design that could meet our DAC’s ultra high dynamic range head on. With the amplifier’s architecture optimized in critical areas, audio performance, longevity, and an ability to drive any speaker became our principal design parameters. We redefined the idea of what an amplifier can be, embedding the M500 with a fully modular design alongside a 1.0 Farad Power Core, a matched impedance input stage and an all billet CNC case. The finest amplifier we’ve ever created, the 500 series redefines excellence and sets a new bar in the industry.

Design without compromise

The M500 features a discrete design featuring a class A matched impedance input stage. This result is a product with minimized signal reflections, input noise, and distortion while also maximizing power transfer and dynamic range in a zero negative feedback design. With custom low-noise high-current toroidal transformers and rugged high-current output buffers, the M500 provides a transparent, holographic listening experience that’s completely fatigue free. All components were meticulously chosen for their sonic performance and longevity, ensuring your amplifier is built to last.

MSB M500 Mono



Billet CNC heatsink

The 500 series amplifier is designed and lovingly crafted in our factory based in California. Each of the heatsinks start out as a 51lb aluminum block before sixty percent is removed over eight hours of machining, resulting in 17.5 lbs of refined aluminum. This high efficiency design provides a surface area of over 10,000 sq in per amplifier. What’s more–the fin thickness is slightly varied to help reduce resonances and ringing in the heatsinks, while multiple high power heat pipes distribute heat evenly for optimal thermal and electrical performance.

Core values

Building  the 500 series amplifiers with a core enclosure greatly improved their reliability and performance. Upon completion, the cores are rigorously tested and stocked for orders, ensuring the highest quality product is ready at a moment’s notice. With this segmentation, your system is optimized for performance and resilience.

Smart control features

The M500 is equipped with a simple, user-friendly control interface. Intuitive push buttons, remote commands, and the 12V triggers guarantee  control over power and standby modes. Further control of amplifier “power on” timers and soft-start circuits allow a multi-amplifier system to power up without putting strain on your listening room’s electrical system.

Powerful configurations

Intuitively oriented speaker lugs direct your speaker cables in the right direction without strain. Multiple ground posts enable EMI reduction strategies, including shielded cables and system star grounds. A 20 amp IEC connection is provided for high current delivery, while three gain settings optimize dynamic range for any speaker.

Anodized finishes

Available in matte silver or matte black.

Static Power Consumption
150 Watts On
Standby power less than 2 watts

Operating Voltage Range
100V or 105-130V/210-260V configured at the factory.

Fuse
1/4"x1-1/4" 15A 250V Slow Blow

Input
1x XLR Input

Output
2x Binding post set per channel

Controls
Gain switch
Input Impedance Switch
On/Off Button
Standby button
Display Dimmer
12V Mode Switch
2x MSB 12V trigger port

Continuous Power Output (8Ω) < 1% distortion
500 W

Continuous Power Output (4Ω) < 1% distortion
1000 W

Frequency Response (20 to 20kHz)
±0.025dB

Signal to Noise (20 to 22kHz)
>134dB (>137dBA)

Equivalent Input Noise (22kHz BW)
0.5μV

Low Gain (75Ω input)
14.8dB

Medium Gain (75Ω input)
20.8dB

High Gain (75Ω input)
26.8dB

Input Impedance (User Selectable)
75Ω / 300Ω / 1.2kΩ

Chassis Dimensions (Per Mono Block)
Width: 381 mm
Depth: 590 mm
Height: 267 mm
Weight: 61.25 kg

Shipping Dimensions (Per Mono Block)
Width: 585 mm
Depth: 839 mm
Height: 534 mm
Weight: 88 kg

Included Accessories
User Manual
IEC C19 Power Cord
