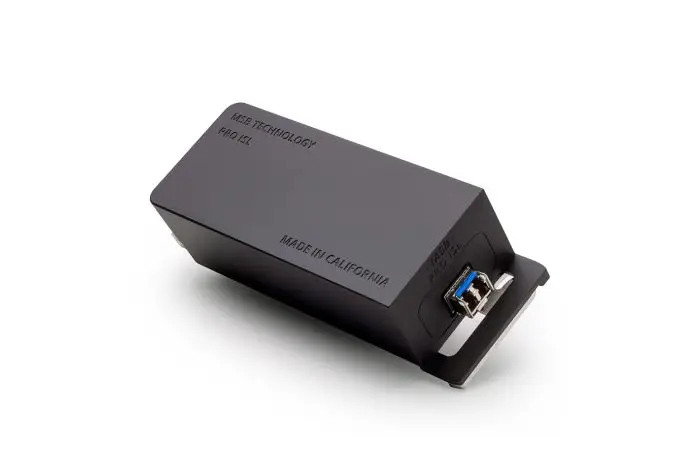

MSB PRO ISL Module

På lager
8.100  DKK

MSB PRO ISL Module sikrer den højeste ydeevne for en digital lydgrænseflade. Interfacet er glasfiberoptisk baseret, hvilket gør det 100% elektrisk isoleret og giver mulighed for utrolige kabellængder uden tab.

Den unikke protokol gør det muligt at føre en kopi med meget lav jitter af DAC-masteruret tilbage til kilden, hvilket skaber en clock med lav jitter, der er synkront med lyddatasystemet. Lyddataene kodes og sendes til DAC, hvor de kontrolleres for fejl og rettes før afspilning.

  • Gratis fragt over 750 DKK
  • Lagervarer sendes indenfor 24 timer
  • Afhentning i butik

MSB PRO ISL Module sikrer den højeste ydeevne for en digital lydgrænseflade. Interfacet er glasfiberoptisk baseret, hvilket gør det 100% elektrisk isoleret og giver mulighed for utrolige kabellængder uden tab.

Den unikke protokol gør det muligt at føre en kopi med meget lav jitter af DAC-masteruret tilbage til kilden, hvilket skaber en clock med lav jitter, der er synkront med lyddatasystemet. Lyddataene kodes og sendes til DAC, hvor de kontrolleres for fejl og rettes før afspilning.


This interface is the highest performance digital audio interface. The interface is glass fiber optic based, making it 100% electrically isolated and allowing for incredible cable lengths with no loss. The unique protocol allows a very low jitter copy of the DAC master clock to be fed back to the source, creating a low jitter clock synchronous with the audio data system. The audio data is encoded and sent to the DAC, where it’s checked for errors and corrected before playback.

The ProISL is capable of multi-channel audio and extremely high sample rates (much higher than any current standard). By using fiber, any noise generated in the source (CPU, drive, video processing, etc…) can be prevented from entering the DAC and the rest of the audio system.

Advantages:

-Synchronous to the DAC
-Offers 100% electrical isolation between source and DAC
-Interface has strong error detection and correction
-Virtually limitless, lossless cable lengths are supported (up to 1km)
-Source device type and capabilities are reported to the DAC (ProUSB, Transport, Etc…)
-Insensitive to ground and noise issues
-Very low jitter

Limitations:

-Offers no software control of the DAC from the source (Volume, etc…)


MSB Interfaces

The input interface can have a significant impact on both the sound quality of the DAC, as well as the overall user experience. Input interfaces are constantly changing and are the main reason why digital equipment becomes obsolete. For this reason, we’ve made our inputs standardized modules that are user replaceable. In each module, we individually design each interface to perform at its absolute peak performance, with minimum noise, jitter, and maximum isolation. While each interface can transfer data to DAC, each has its own advantages and disadvantages. The primary difference between each interface is they add different amounts of noise and jitter to the audio system. With each interface,our goal is to have perfectly isolated, bit-perfect, low noise and low jitter data transfer.

MSB input modules are a standardized, swappable design that supports all of our DACs. This allows any module to be moved from one DAC to another for seemless upgradeability.  Each module uses a toolless lever lock system for modules that allows simple, quick upgrades and replacements.
