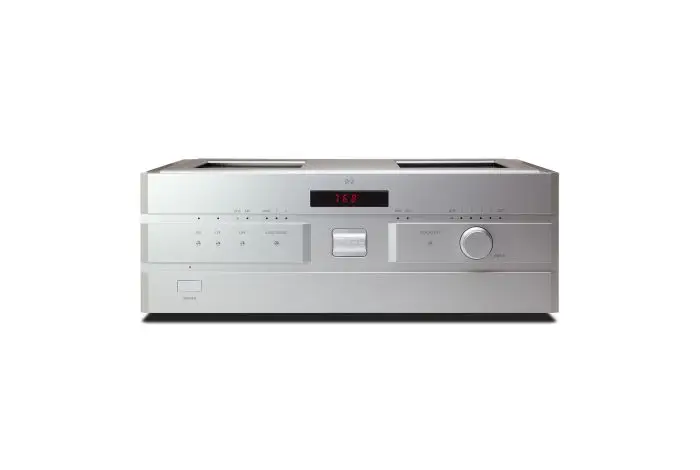

Soulnote D-2 v2 DAC
Version 2 af Soulnote D-2 DAC'en, en fuldt balanceret Type-R kredsløb oprindeligt udviklet til 3-serien, nu yderligere optimeret og implementeret til højt niveau af klarhed og dynamisk energi.
- Gratis fragt over 750 DKK
- Lagervarer sendes indenfor 24 timer
- Afhentning i butik
• Optimized Analog Circuit
For DAC application, the fully balanced, non-NFB “New Type-R” (*) circuit is originally developed for E-3, has been optimized and implemented. This design achieves a level of clarity and dynamic energy approaching that of the 3 Series.
• Enhanced External Clock Connectivity
The external clock input now features a newly developed SMA connector with superior high-frequency characteristics and reinforced construction. This eliminates the need for conversion adapters when connecting the X-3 Clock Generator. When paired with the X-3, the D-2 VER2 delivers a remarkable improvement in tonality and refinement across the entire frequency range.
• Comprehensive Refinements inspired by the 3 Series
Expertise from the 3 Series has also been applied to the digital circuitry, power supply, and chassis design. The result is a significant enhancement in openness, musical presence, and expressiveness.
Input formal:
- USB: PCM, DSD (DoP v1.1, ASIO Native)
- Coaxial・AES/EBU: PCM, DSD (DoP v1.1)
Supported Sampling Frequencies:
- USB: Max. 768 kHz (PCM) / Max. 22.6 MHz (DSD)
- Coaxial・AES/EBU: Max. 192 kHz (PCM) / Max. 2.8 MHz (DSD64 DoP v1.1)
PCM quantization bit rate:
- USB: 16-bit, 24-bit, 32-bit
- Coaxial・AES/EBU: 16-bit, 24-bit
Digital Input: USB (Type B), Coaxial x2(SPDIF), AES/EBU
External Clock Input: 10 MHz (SMA 50 Ω)
Analog Output level: BALANCED x1, UNBALANCED x1
Analog Output level (BALANCE): 6.2 Vrms
Analog Output level (UNBALANCE): 3.1 Vrms
Frequency characteristic: 2 Hz to 20 kHz (+0/-1 dB)
S/N: 110 dB
Total harmonic distortion: 0.04% (NOS/44.1 kHz)
Analog filter: 1st-dimentional passive
Power voltage: 230V AC 50Hz
Power consumption: 32W
Dimensions: 430 (W) × 160 (H) × 405 (D) mm
Weight: Approximately 17 kg
Included accessories: Spikes, power cable
