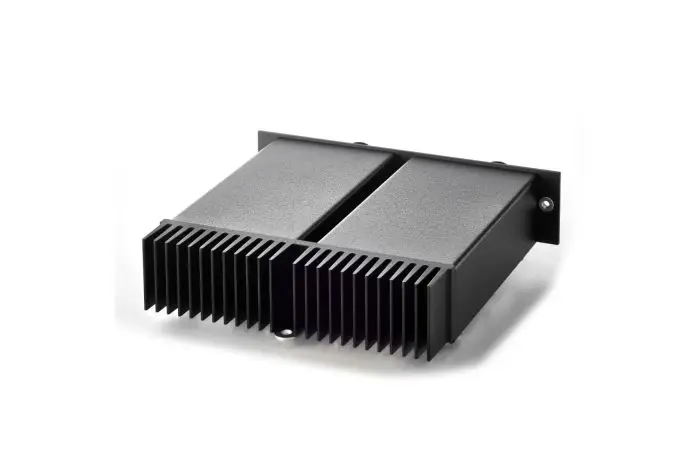

The Gryphon Diablo 333 PS3 Phono
Gryphon PS3 MM/MC Phono leverer ultimativ lyd til vinyl-entusiaster. Med balanceret dual-mono design og justerbar MC-belastning opgraderer PS3 din Diablo 333 til perfektion.
- Gratis fragt over 750 DKK
- Lagervarer sendes indenfor 24 timer
- Afhentning i butik
Gryphon Audio Designs har altid støttet vinyl-formatet med højtydende MC/MM phono-trin som valgfrie moduler, der kan installeres i både forforstærkere og integrerede forstærkere på tværs af hele vores produktsortiment.
Baseret på det legendariske Legato-phono-trin er Gryphon PS3 MM/MC Phono Module en ægte balanceret dual-mono konstruktion, der forbedrer kanalseparationen og gør det muligt at gengive hver eneste musikalske detalje med ultimativ realisme.
PS3 er en opdateret version af vores anerkendte PS2 og PS2-S, med et udvidet udvalg af belastningsimpedanser til MC-pickupper, som kan justeres via bagpanelet, samt fuldt balanceret signalhåndtering.
PS3-modulet kan tilvælges som ekstraudstyr til Diablo 333, med flere muligheder på vej.
Features
- True Dual Mono Class A topology with no global negative feedback.
- Discrete build balanced topology featuring matched transistor arrays.
- Designed to fully exploit the inherently balanced nature of the phono cartridge.
- MC load impedance can be set externally with left/right rear panel switches.
- Changeable MC/MM setting via Gryphon Diablo 333 menu.
- Polypropylene capacitors used in RIAA correction stages.
- DC-coupled topology from input to output
- One gold plated Neutrik XLR balanced input socket.
- Ultra-short signal path with minimal internal/external wiring.
- Low noise +/- 23VDC regulated voltage supplies for excellent analogue THD and noise suppression.
- Four-layer printed circuit board with 70μm copper traces.
- Designed and built in Denmark.True Dual Mono Class A topology with no global negative feedback.
- Discrete build balanced topology featuring matched transistor arrays.
- Designed to fully exploit the inherently balanced nature of the phono cartridge.
- MC load impedance can be set externally with left/right rear panel switches.
- Changeable MC/MM setting via Gryphon Diablo 333 menu.
- Polypropylene capacitors used in RIAA correction stages.
- DC-coupled topology from input to output
- One gold plated Neutrik XLR balanced input socket.
- Ultra-short signal path with minimal internal/external wiring.
- Low noise +/- 23VDC regulated voltage supplies for excellent analogue THD and noise suppression.
- Four-layer printed circuit board with 70μm copper traces.
- Designed and built in Denmark.
Gain:
MC: 64dB MM: 42dB
Impedance settings:
MC: 20Ω to 1600Ω in steps. MM: 47KΩ // 220pF
Signal to Noise ratio:
MC: (Input 2.5 mV, 1 kHz): >72 dB MM: (Input 250 mV, 1 kHz): >84 dB
